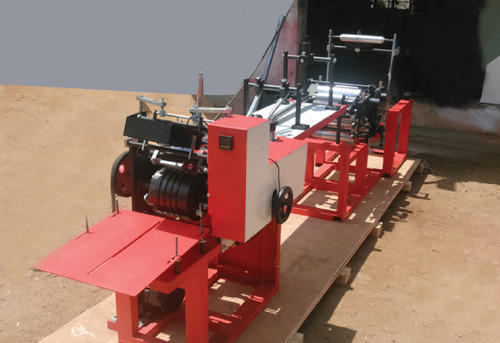

Satchel Cover Making Machine

Product Description

We are Leading Manufacturers and Suppliers of Satchel Cover Making Machine.
  Machine specification:

    Paper cover running size: width 6cm to 18cm; length 9cm to 30 cm
    Gazzetta  5 cm to 10cm.
    Gsm of the paper: 44gsm to 140gsm
    Bf strength of the paper: 16bf to 34bf
    Unwind paper roll size: up to 1000mm
    Production covers per hour: up to 14000 to 20000 (depends on cover size)
    Motor: 2h.P 3phase induction motor 230v (or)440v
    Drive system: A.C drive 440v (or) 230v as/your reg
    Total power: 2h.P/440v (or) 230v
    Counting system: digital counter with batch counting
    Sensing system: Metal magnetic sensor 250l 15v
    Size plates: 6 sizes of standard plates attached
    Size gears: 6 size gears are attached
    Switches: push button and soft button switches
    Curb weight: 650 kg (negotiation with attached units)
    Machine dimension: 3000(l) x1250(w) x1100(h) all in mm
    Gum tank capacity (tail): 2 kg
    Gum tank capacity (center): 1 liter
    Gum type: water base ordinary binding gum
    Printing unit: attachable space available
    Suggest printing system: flexo printing
    Available printing units: single & double
    Inking system: water base ink

Additional Information:

    Minimum Order Quantity: 1 Unit
